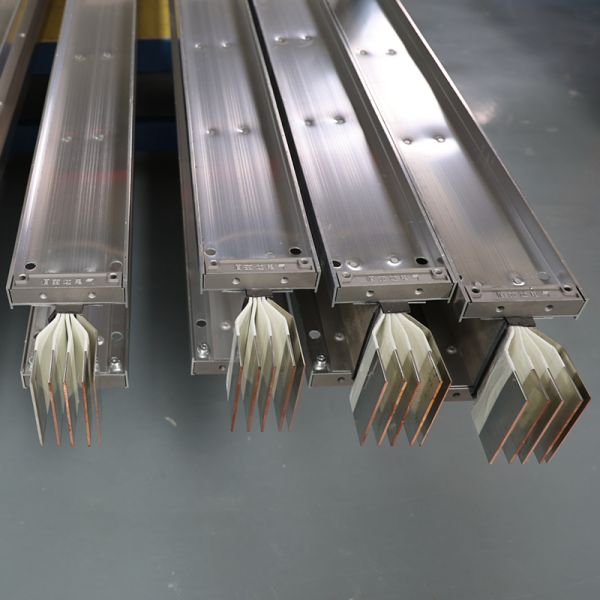

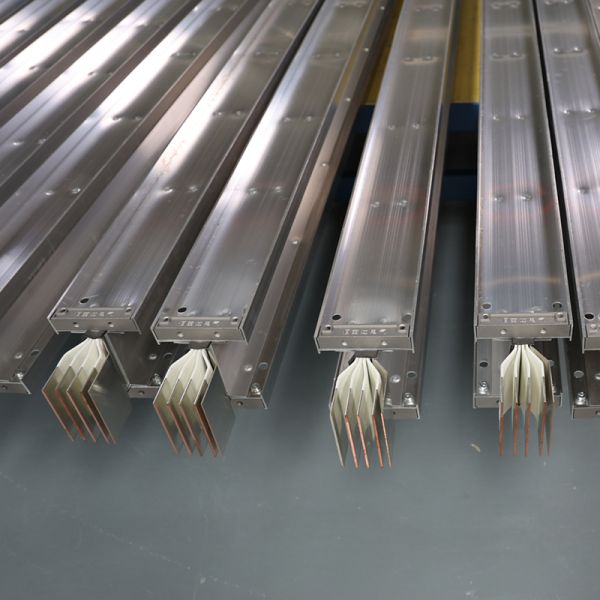

Power Cables Busbar Trunking System Dense Busbar Duct IP54 IP66

Name: Power Cables Busbar Trunking System Dense Busbar Duct IP54 IP66
Brand: BZIDA
Price: 1 USD

Quality Power Cables Busbar Trunking System Dense Busbar Duct IP54 IP66 for sale

Certification : ISO9001

Place of Origin : Langfang, Hebei, China

Rated Current : 200 - 6300 A

Material : Aluminum, copper

Surface treatment : Housing aluminum alloy/conductor TMY copper

Conductor material : Copper or aluminum

Degree of protection : IP54/IP66

Rated Voltage : 690 V, 1000V

Working Temperature : -40℃~+80℃

Rated frequency : 50Hz--60Hz

Brand Name : BZIDA

MOQ : 50 meters

Packaging Details : Export standard compliant

Delivery Time : 30 days

Payment Terms : 30% prepayment, full payment upon delivery

Supply Ability : 3000 meters per month

Contact Now

Hight Quality Power Cables Busbar Machine Busbar Trunking System Dense Busbar Duct

Product Description:

The core conductors of the structure are tightly arranged, and the outer shell is tightly pressed against the insulation layer, leaving an air gap between the conductors. The outer shell forms an independent compartment

Heat dissipation principle: Heat → Insulation layer → Metal shell → Air (excellent conduction heat dissipation) Air convection heat dissipation (requires more space)

The protection level (IP) is usually IP40~IP54 (with a focus on dust prevention) and can reach IP54~IP66 (with excellent dust and water resistance)
Typical scenarios include super high-rise core tube, data center main channel, drying plant chemical workshop, food factory, subway platform, outdoor power distribution

Features:

1. The bus duct adopts a rectangular conductor structure and achieves higher current carrying capacity per unit cross-sectional area through optimized cross-sectional design. Compared to traditional cables, its conductor heat dissipation efficiency is improved by more than 30%. At a rated current of 4000A (common specification), the temperature rise is controlled within a reasonable range, effectively reducing electrical energy loss.

2. The enclosure of the bus duct is usually designed with an IP65 protection level, which can completely prevent dust intrusion and low-pressure water jet. It is suitable for humid, dusty or chemically corrosive environments (such as hospital operating rooms and chemical workshops). Its insulation voltage reaches 660V, and with the tin plating process, it further enhances the corrosion resistance of the conductor and extends its service life.

3. The bus duct supports hanging installation method, which achieves fast splicing through standard connectors, and the installation efficiency is increased by more than 50% compared to cable wiring. Its external dimensions and cross-sectional form can be customized according to site requirements, adapting to complex spatial layouts such as data center cabinet arrangement and commercial complex floor power distribution.

Technical Parameters:

Origin	Hebei, China
Rated current	100~6300A,25~125A
Type	Dense type, air type, lighting busbar, sliding contact type
Conductor	Copper conductor or aluminum conductor
Sample	Available
Application area	Industrial sector, commercial buildings, public infrastructure, new energy and power systems
Function	Efficient power transmission, flexible distribution and expansion, safety protection

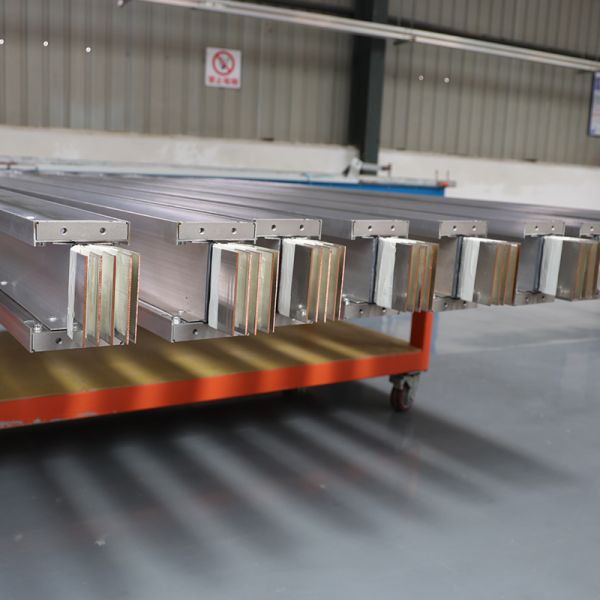

Power Cables Busbar Trunking System Dense Busbar Duct IP54 IP66

FAQ:

1.Are you a trade company or a manufacturer?

Baizida Electrical Equipment Co., Ltd is a production and sales-oriented enterprise focusing on the production of power equipment, integrating design, research and development, manufacturing and technical services.

2.What are the main products of your company?

Our company specializes in the production and sales of high-quality power equipment, including power distribution equipment, electrical products, generators, charging piles, frequency converters, etc. It is widely used in residential, commercial and industrial fields.

3.How do you ensure the quality of your products?

We strictly adhere to international standards and quality management systems. All products undergo rigorous testing and inspection before leaving the factory. We also offer a product quality guarantee period to ensure that the products you purchase meet your expected performance.

4.Do you offer customization services?

Yes, we can provide customized services according to the specific needs of our customers. Whether it's product specifications, design, or functionality, our technical team can work with you to develop solutions that meet your requirements.

5.Can you print our brand on the product?

Yes, of course, we also do OEM to print client’s brand on the product
