IP54 IP66 Customized Bus Way Electrical Copper Low Voltage Cable Bus Duct

Quality Products Wholesale Customized Electrical Copper Busway Low Voltage Busway Systems

Product Description:

Bus duct is an important component of the low-voltage distribution main system in the design of building electrical low-voltage distribution. According to the national standard GB7251.6-2015 "Low voltage switchgear and control equipment - Part 6: Busbar trunking system (busbar trunking)", the definition of busbar trunking is as follows:

Busways: A closed set of equipment formed by a conductor system for distributing and controlling electrical energy for all types of loads, suitable for industrial, commercial, and similar purposes. The conductor system consists of busbars separated and supported by insulating materials in pipelines, slots, or similar enclosures.

Features:

1. High current carrying capacity to meet high current demands
The rated current of a single bus duct can reach 6300A, which is much higher than that of traditional cables (up to about 1600A).
In large factories, data centers, airports, and other scenarios, bus ducts can stably carry high loads.

2. Flexible installation, saving space and time
The bus duct adopts modular design, plug and play, and can add or remove branches without power outage.
Compared to cable trays, it saves space, reduces wiring complexity, and shortens the construction period by more than 30%.

3. Safe, reliable, and easy to maintain
Metal shell protection, fire-resistant, waterproof, and corrosion-resistant. Some products, such as "slot public safety bus duct", have achieved IP68 protection level.
Daily maintenance only requires checking the temperature rise of joints and the tightening of bolts, which is more than 50% cheaper than cable maintenance costs.

Technical Parameters:

FAQ:

customized bus way electrical

bus way electrical copper

low voltage cable bus duct

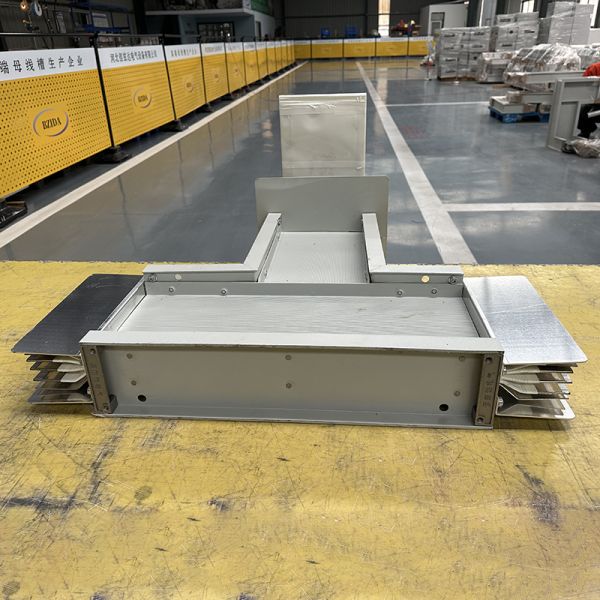

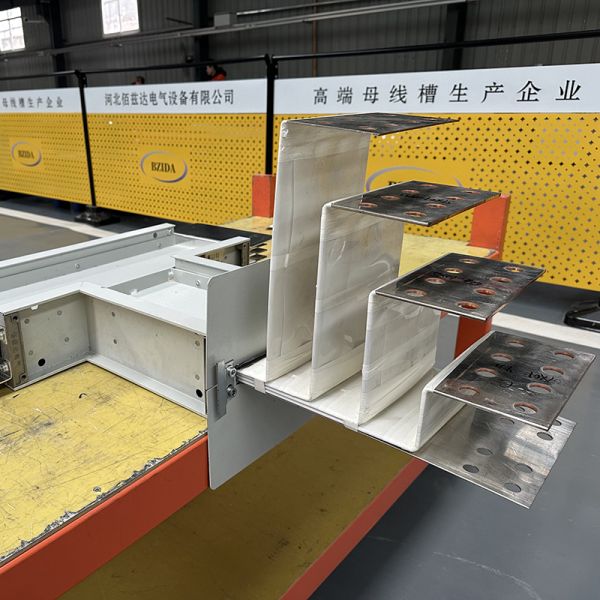

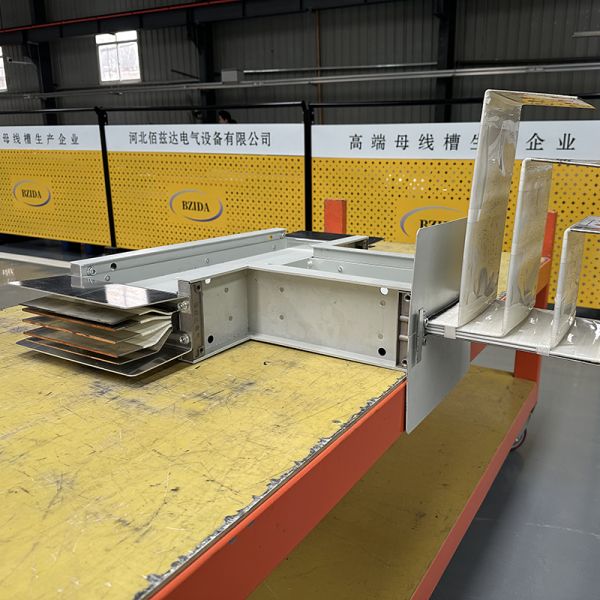

IP54 IP66 Customized Bus Way Electrical Copper Low Voltage Cable Bus Duct Images
