Galvanized Sheet Sprayed Plastic Air Insulated Busbar Trunking For Efficient Power Distribution

Name: Galvanized Sheet Sprayed Plastic Air Insulated Busbar Trunking For Efficient Power Distribution
Brand: BZIDA
Price: 1 USD

Quality Galvanized Sheet Sprayed Plastic Air Insulated Busbar Trunking For Efficient Power Distribution for sale

Certification : ISO9001

Place of Origin : Langfang, Hebei, China

Application : Outdoor, Industrial, Electric Power Transmission

Type : Air Insulated Busway

Conductor material : Copper or aluminum

Size : Customized

Protection Level : IP54/IP66

Customization : On demand processing

Quality : Durable

Working Temperature : -40℃~+80℃

Rated Current : 100A-6300A

Brand Name : BZIDA

MOQ : 50 meters

Packaging Details : Export standard compliant

Delivery Time : 30 days

Payment Terms : 30% prepayment, full payment upon delivery

Supply Ability : 3000 meters per month

Contact Now

High-Quality Galvanized Sheet/Sprayed Plastic Air Insulated Busbar Trunking For Efficient Power Distribution

Product Description:

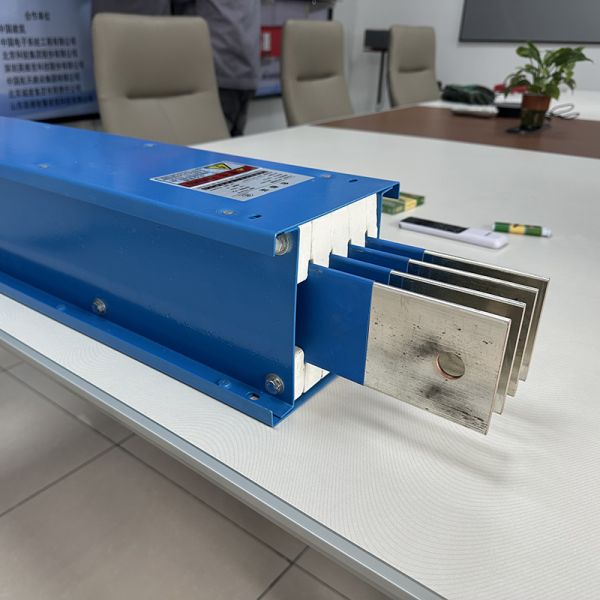

Air type busbar trunking is a low-voltage distribution equipment used in the field of power engineering, mainly for power transmission in workshops, factories, and high-rise buildings, in accordance with the JB/T 8511-2011 industry standard. The outer shell is made of high-strength cold-rolled steel and cold-rolled into a corrugated structure, which not only enhances the mechanical strength of the bus duct and the dynamic and thermal stability of the system, but also solves the problem of large-span installation on the construction site. The built-in tin plated electrolytic copper conductor is heat shrink treated with PVC tube and isolated by insulation block, forming double insulation protection.

Features:

1. Excellent heat dissipation performance
Air, as a natural cooling medium, has high heat dissipation efficiency and is suitable for high current applications. By natural convection of air, the heat generated by the conductor can be carried away, maintaining the system temperature within a safe range.

2. High safety and reliability
The air type busbar adopts a double insulation design, and the copper busbar is protected by double insulation, greatly improving the insulation performance. Reasonably designed air gaps can effectively prevent arcing and ensure the safety of personnel and equipment.

3. Easy installation and maintenance
The air type bus duct adopts a docking installation method, which is convenient and flexible to install, and can significantly save construction time. All current levels are designed with a unified cover plate, which has a high degree of standardization and strong interchangeability.

4. Mechanical strength and environmental performance

The shell has sufficient load-bearing capacity to effectively protect the bus duct system from mechanical damage. Air, as an insulating medium, does not produce harmful substances or waste, which conforms to the production concept of green environmental protection.

Technical Parameters:

Product name	Bus Duct
Origin	Hebei, China
Rated current	100~6300A,25~125A
Specifications	Three phase three wire, three phase four wire, three phase five wire
Type	Dense type, air type, lighting busbar, sliding contact type
Sample	Available
Application area	Industrial sector, commercial buildings, public infrastructure, new energy and power systems
Function	Efficient power transmission, flexible distribution and expansion, safety protection

Galvanized Sheet Sprayed Plastic Air Insulated Busbar Trunking For Efficient Power Distribution

FAQ:

1.Are you a trade company or a manufacturer?

Baizida Electrical Equipment Co., Ltd is a production and sales-oriented enterprise focusing on the production of power equipment, integrating design, research and development, manufacturing and technical services.

2.What are the main products of your company?

Our company specializes in the production and sales of high-quality power equipment, including power distribution equipment, electrical products, generators, charging piles, frequency converters, etc. It is widely used in residential, commercial and industrial fields.

3.How do you ensure the quality of your products?

We strictly adhere to international standards and quality management systems. All products undergo rigorous testing and inspection before leaving the factory. We also offer a product quality guarantee period to ensure that the products you purchase meet your expected performance.

4.Do you offer customization services?

Yes, we can provide customized services according to the specific needs of our customers. Whether it's product specifications, design, or functionality, our technical team can work with you to develop solutions that meet your requirements.

5.Can you print our brand on the product?

Yes, of course, we also do OEM to print client’s brand on the product
