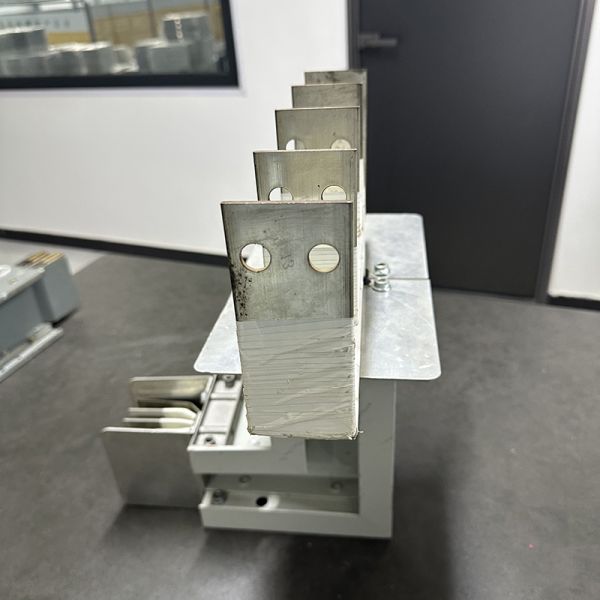

Plug In Box Sandwich Type Busbar For Dense Insulation Type Bus Duct

Name: Plug In Box Sandwich Type Busbar For Dense Insulation Type Bus Duct
Brand: BZIDA
Price: 1 USD

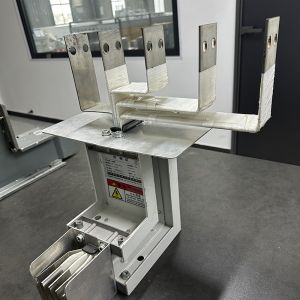

Quality Plug In Box Sandwich Type Busbar For Dense Insulation Type Bus Duct for sale

Certification : ISO9001

Place of Origin : Langfang, Hebei, China

Material : Copper

Protection Level : IP54/IP66

Application : Electricity, buildings, ships

Color : Silvery

Name : Enclosed Busway

Use : Electric Power Transmission

Size : Customizable on demand

Rated insulation voltage : 660V/1000V

Rated working voltage : 380V/660V

Brand Name : BZIDA

MOQ : 50 meters

Packaging Details : Export standard compliant

Delivery Time : 30 days

Payment Terms : 30% prepayment, full payment upon delivery

Supply Ability : 3000 meters per month

Contact Now

Cost-Effective Plug-In Box, Starting-End Box And Connector For Dense Insulation Type Bus Duct

Product Description:

After completing the installation of the busbar, comprehensive debugging work is required. This includes but is not limited to monitoring the operational status of the busbar system to ensure its stability and reliability. At the same time, it is necessary to conduct detailed testing and adjustment of various parameters of the busbar system to ensure that it meets the design requirements and actual usage needs. In addition, a comprehensive inspection and testing of the safety protection measures for the busbar system is also necessary to ensure timely and effective response and handling in the event of a malfunction. Through these steps, it can be ensured that the busbar system can operate safely and stably after power transmission, meeting the electricity needs of users.

Features:

The bus duct system can meet the rated current requirement of up to 5000A, while cables require multiple parallel connections to meet this standard.

The cross-sectional size of the 5000A LD bus duct is only 240 × 180mm, which greatly saves space. In contrast, cables require a large amount of space.

Bus ducts can be directly controlled near equipment, while cables must be centrally controlled in the distribution room, resulting in poor flexibility.

The bus duct is equipped with standard installation brackets, simplifying the installation process and eliminating the need for additional support; And cables need to be laid through specialized cable trays or pipelines, which increases complexity.

The durability of the bus duct is extremely high, with a lifespan of up to 50 years, and it can be reused; However, cables are shorter and cannot be reused, resulting in relatively higher costs.

The sub interface design of the bus duct makes it simple and feasible to add sub circuits, while cables need to be laid from the distribution room and cannot be flexibly adjusted.

The insurance cost for bus ducts is relatively low, further reducing the overall cost; The insurance cost for cables is relatively high.

Technical Parameters:

Product Name	Electrical Busduct
Conductor	Copper or Aluminum Busbar
Rated Frequency	50/60Hz
Protection Level	IP54/IP66
Insulation Material	Epoxy or Polyester Film
Product Standard	IEC 61439-6:2012
OEM/ODM	Acceptable and Welcome
Application	Shopping Malls, Hotels, Factories, Hospitals, Apartments
Package	Wooden Cases

Plug In Box Sandwich Type Busbar For Dense Insulation Type Bus Duct

FAQ:

1.Are you a trade company or a manufacturer?

Baizida Electrical Equipment Co., Ltd is a production and sales-oriented enterprise focusing on the production of power equipment, integrating design, research and development, manufacturing and technical services.

2.What are the main products of your company?

Our company specializes in the production and sales of high-quality power equipment, including power distribution equipment, electrical products, generators, charging piles, frequency converters, etc. It is widely used in residential, commercial and industrial fields.

3.How do you ensure the quality of your products?

We strictly adhere to international standards and quality management systems. All products undergo rigorous testing and inspection before leaving the factory. We also offer a product quality guarantee period to ensure that the products you purchase meet your expected performance.

4.Do you offer customization services?

Yes, we can provide customized services according to the specific needs of our customers. Whether it's product specifications, design, or functionality, our technical team can work with you to develop solutions that meet your requirements.

5.Can you print our brand on the product?

Yes, of course, we also do OEM to print client’s brand on the product
