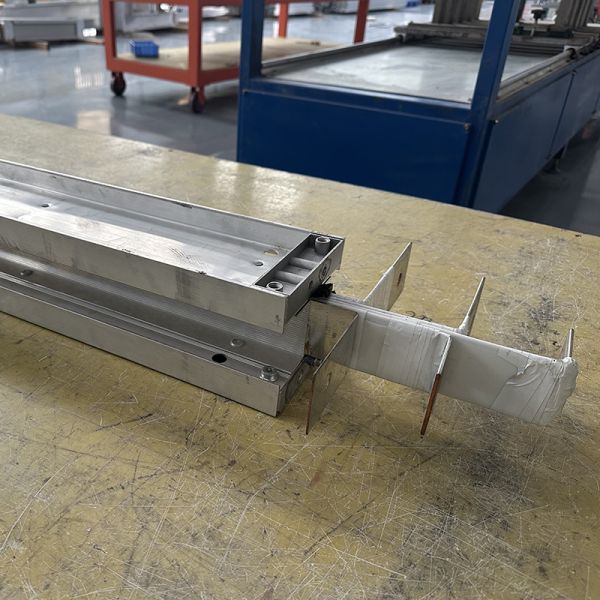

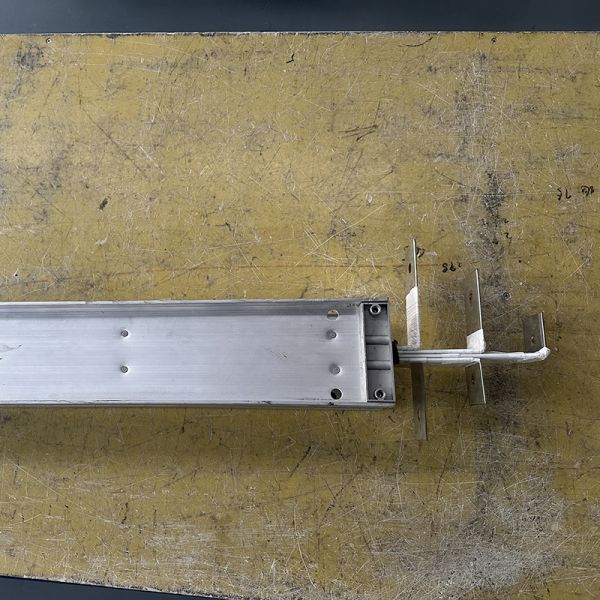

UL/IEC Aluminum Bus Duct Custom Insulation Power Busways iec 61439 6 250-6300A

Name: ULIEC Aluminum Bus Duct Custom Insulation Power Busways iec 61439 6 2506300A
Brand: BZIDA
Price: 1 USD

Quality UL/IEC Aluminum Bus Duct Custom Insulation Power Busways iec 61439 6 250-6300A for sale

Certification : ISO9001

Place of Origin : Langfang, Hebei, China

Rated Current : 250-6300A

Material : Copper

Type : Power Busways

Application : Electricity, buildings, ships

Name : Enclosed Busway

Use : Electric Power Transmission

Size : Customizable on demand

Rated insulation voltage : 660V/1000V

Rated working voltage : 380V/660V

Brand Name : BZIDA

MOQ : 50 meters

Packaging Details : Export standard compliant

Delivery Time : 30 days

Payment Terms : 30% prepayment, full payment upon delivery

Supply Ability : 3000 meters per month

Contact Now

Copper Busway and Copper Bus Duct From Factory: UL/IEC-Approved, Custom Insulation Options for Manufacturing Plants

Product Description:

Compared to cables, busbar trunking systems exhibit significant advantages in installation. The connection method between its linear units is simple and efficient, which can be completed through a single bolt connector, greatly simplifying the installation steps. The installation of cables is relatively complex, especially for exposed laying methods, which require the configuration of specialized cable trays; If underground laying is adopted, it is necessary to excavate trenches, which results in relatively high construction costs.

Features:

The bus duct system can meet the rated current requirement of up to 5000A, while cables require multiple parallel connections to meet this standard.

The cross-sectional size of the 5000A LD bus duct is only 240 × 180mm, which greatly saves space. In contrast, cables require a large amount of space.

Bus ducts can be directly controlled near equipment, while cables must be centrally controlled in the distribution room, resulting in poor flexibility.

The bus duct is equipped with standard installation brackets, simplifying the installation process and eliminating the need for additional support; And cables need to be laid through specialized cable trays or pipelines, which increases complexity.

The durability of the bus duct is extremely high, with a lifespan of up to 50 years, and it can be reused; However, cables are shorter and cannot be reused, resulting in relatively higher costs.

The sub interface design of the bus duct makes it simple and feasible to add sub circuits, while cables need to be laid from the distribution room and cannot be flexibly adjusted.

The insurance cost for bus ducts is relatively low, further reducing the overall cost; The insurance cost for cables is relatively high.

Technical Parameters:

Product Name	Electrical Busduct
Conductor	Copper or Aluminum Busbar
Rated Current	250A-6300A
Insulation Material	Epoxy or Polyester Film
Product Standard	IEC 61439-6:2012
OEM/ODM	Acceptable and Welcome
Application	Shopping Malls, Hotels, Factories, Hospitals, Apartments
Package	Wooden Cases

UL/IEC Aluminum Bus Duct Custom Insulation Power Busways iec 61439 6 250-6300A

FAQ:

1.Are you a trade company or a manufacturer?

Baizida Electrical Equipment Co., Ltd is a production and sales-oriented enterprise focusing on the production of power equipment, integrating design, research and development, manufacturing and technical services.

2.What are the main products of your company?

Our company specializes in the production and sales of high-quality power equipment, including power distribution equipment, electrical products, generators, charging piles, frequency converters, etc. It is widely used in residential, commercial and industrial fields.

3.How do you ensure the quality of your products?

We strictly adhere to international standards and quality management systems. All products undergo rigorous testing and inspection before leaving the factory. We also offer a product quality guarantee period to ensure that the products you purchase meet your expected performance.

4.Do you offer customization services?

Yes, we can provide customized services according to the specific needs of our customers. Whether it's product specifications, design, or functionality, our technical team can work with you to develop solutions that meet your requirements.

5.Can you print our brand on the product?

Yes, of course, we also do OEM to print client’s brand on the product
