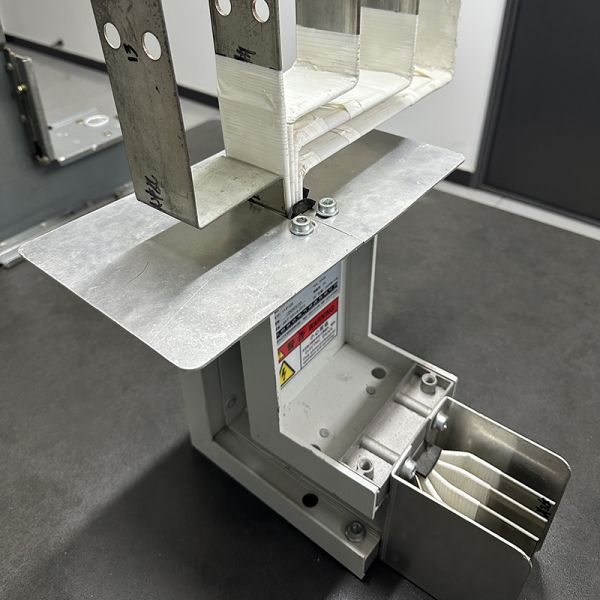

800A-3200A Compact Busbar Trunking System Sandwich Type Enclosed

Name: 800A3200A Compact Busbar Trunking System Sandwich Type Enclosed
Brand: BZIDA
Price: 1 USD

Quality 800A-3200A Compact Busbar Trunking System Sandwich Type Enclosed for sale

Certification : ISO9001

Place of Origin : Langfang, Hebei, China

Name : Enclosed Busway

Rated Current : 250-6300A

Material : Copper

Type : Power Busways

Rated frequency : 50Hz--60Hz

Color : Silvery

Use : Electric Power Transmission

Size : Customizable on demand

Brand Name : BZIDA

MOQ : 50 meters

Packaging Details : Export standard compliant

Delivery Time : 30 days

Payment Terms : 30% prepayment, full payment upon delivery

Supply Ability : 3000 meters per month

Contact Now

800A-3200A Compact Sandwich Busbar Aluminum Bus Duct Copper Busway

Product Description:

After completing the installation and connection of the busbar, the power transmission process can be carried out. This process will involve the start-up and commissioning of the power system to ensure the safe and stable operation of the busbar system.

Before power transmission on the busbar, it is necessary to carefully check the tightening of all screws and confirm whether the external end of the connector joint bolt has been unscrewed and fallen off. Afterwards, it is necessary to verify whether the phase sequence of the busbar is consistent with that of the low-voltage cabinet, and ensure that the switch of the plug-in box is in the disconnected state.

Before power transmission, an insulation test must be conducted, using a 500V megohmmeter to measure the insulation resistance between phases, phase shells, and various functional units of the busbar. It is required that the insulation resistance of all measuring points should not be less than 2M Ω, and the test results should be recorded in a table. The power transmission operation can only be carried out after being signed and confirmed by the owner.

Features:

The bus duct system can meet the rated current requirement of up to 5000A, while cables require multiple parallel connections to meet this standard.

The cross-sectional size of the 5000A LD bus duct is only 240 × 180mm, which greatly saves space. In contrast, cables require a large amount of space.

Bus ducts can be directly controlled near equipment, while cables must be centrally controlled in the distribution room, resulting in poor flexibility.

The bus duct is equipped with standard installation brackets, simplifying the installation process and eliminating the need for additional support; And cables need to be laid through specialized cable trays or pipelines, which increases complexity.

The durability of the bus duct is extremely high, with a lifespan of up to 50 years, and it can be reused; However, cables are shorter and cannot be reused, resulting in relatively higher costs.

The sub interface design of the bus duct makes it simple and feasible to add sub circuits, while cables need to be laid from the distribution room and cannot be flexibly adjusted.

The insurance cost for bus ducts is relatively low, further reducing the overall cost; The insurance cost for cables is relatively high.

Technical Parameters:

Rated Voltage	No mare than 1000V
Rated Frequency	50/60Hz
Protection Level	IP54/IP66
Insulation Material	Epoxy or Polyester Film
Product Standard	IEC 61439-6:2012
OEM/ODM	Acceptable and Welcome
Application	Shopping Malls, Hotels, Factories, Hospitals, Apartments
Package	Wooden Cases

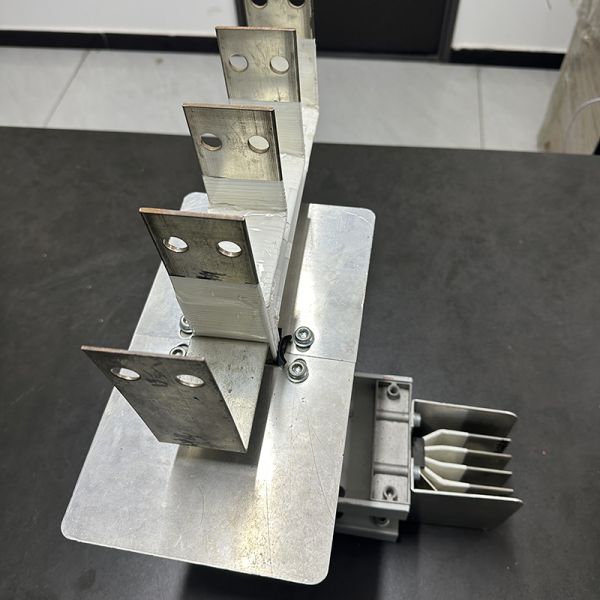

800A-3200A Compact Busbar Trunking System Sandwich Type Enclosed

FAQ:

1.Are you a trade company or a manufacturer?

Baizida Electrical Equipment Co., Ltd is a production and sales-oriented enterprise focusing on the production of power equipment, integrating design, research and development, manufacturing and technical services.

2.What are the main products of your company?

Our company specializes in the production and sales of high-quality power equipment, including power distribution equipment, electrical products, generators, charging piles, frequency converters, etc. It is widely used in residential, commercial and industrial fields.

3.How do you ensure the quality of your products?

We strictly adhere to international standards and quality management systems. All products undergo rigorous testing and inspection before leaving the factory. We also offer a product quality guarantee period to ensure that the products you purchase meet your expected performance.

4.Do you offer customization services?

Yes, we can provide customized services according to the specific needs of our customers. Whether it's product specifications, design, or functionality, our technical team can work with you to develop solutions that meet your requirements.

5.Can you print our brand on the product?

Yes, of course, we also do OEM to print client’s brand on the product
