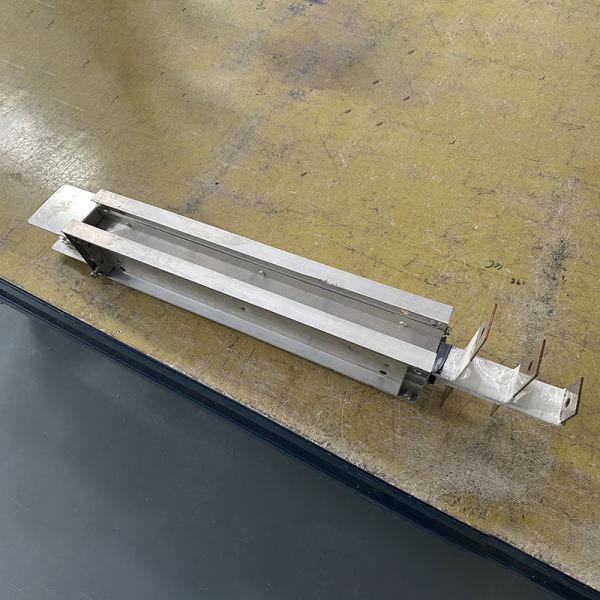

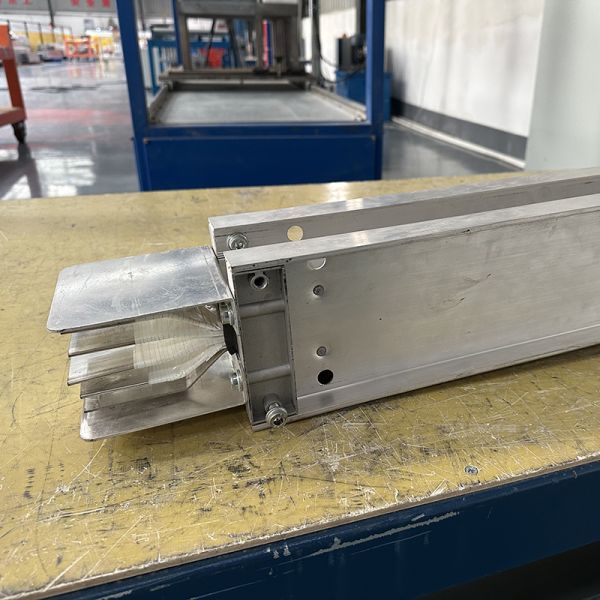

Premium Electrical Sandwich Busduct Trunking Customizable Size

Name: Premium Electrical Sandwich Busduct Trunking Customizable Size
Brand: BZIDA
Price: 1 USD

Quality Premium Electrical Sandwich Busduct Trunking Customizable Size for sale

Certification : ISO9001

Place of Origin : Langfang, Hebei, China

Rated Current : 250-6300A

Material : Copper

Type : Power Busways

Rated frequency : 50Hz--60Hz

Color : Silvery

Name : Enclosed Busway

Use : Electric Power Transmission

Size : Customizable on demand

Rated insulation voltage : 660V/1000V

Brand Name : BZIDA

MOQ : 50 meters

Packaging Details : Export standard compliant

Delivery Time : 30 days

Payment Terms : 30% prepayment, full payment upon delivery

Supply Ability : 3000 meters per month

Contact Now

Compact Electrical Copper Aluminum Busway & Cable System Bus Duct & Busbar Trunking Premium Quality Busway

Product Description:

During the construction process, the insulation condition of the busbar should be measured while installing to ensure that the insulation performance of the busbar meets the requirements for power transmission after installation. The fasteners used must be hot-dip galvanized products to ensure their corrosion resistance.

The connection between bus segments and the handling of all joints must be carried out after cleaning, and mechanical stress should be avoided after the connection is completed to prevent deformation under stress and affect the conductivity. The connection between busbars should be made through intermediate connectors. During installation, the external end of the joint bolt should be unscrewed and the torque should be set within the range of 70 (± 6) Nm.

For the connection between the copper plate and flange of a general electrical panel, a soft copper strip with the same current carrying capacity should be used for the connection, and the soft copper strip should be galvanized. In this project, we chose to use copper bars with the same current carrying capacity for connection.

Features:

The bus duct system can meet the rated current requirement of up to 5000A, while cables require multiple parallel connections to meet this standard.

The cross-sectional size of the 5000A LD bus duct is only 240 × 180mm, which greatly saves space. In contrast, cables require a large amount of space.

Bus ducts can be directly controlled near equipment, while cables must be centrally controlled in the distribution room, resulting in poor flexibility.

The bus duct is equipped with standard installation brackets, simplifying the installation process and eliminating the need for additional support; And cables need to be laid through specialized cable trays or pipelines, which increases complexity.

The durability of the bus duct is extremely high, with a lifespan of up to 50 years, and it can be reused; However, cables are shorter and cannot be reused, resulting in relatively higher costs.

The sub interface design of the bus duct makes it simple and feasible to add sub circuits, while cables need to be laid from the distribution room and cannot be flexibly adjusted.

The insurance cost for bus ducts is relatively low, further reducing the overall cost; The insurance cost for cables is relatively high.

Technical Parameters:

Product Name	Electrical Busduct
Conductor	Copper or Aluminum Busbar
Rated Current	250A-6300A
Rated Voltage	No mare than 1000V
Rated Frequency	50/60Hz
Product Standard	IEC 61439-6:2012
OEM/ODM	Acceptable and Welcome
Application	Shopping Malls, Hotels, Factories, Hospitals, Apartments
Package	Wooden Cases

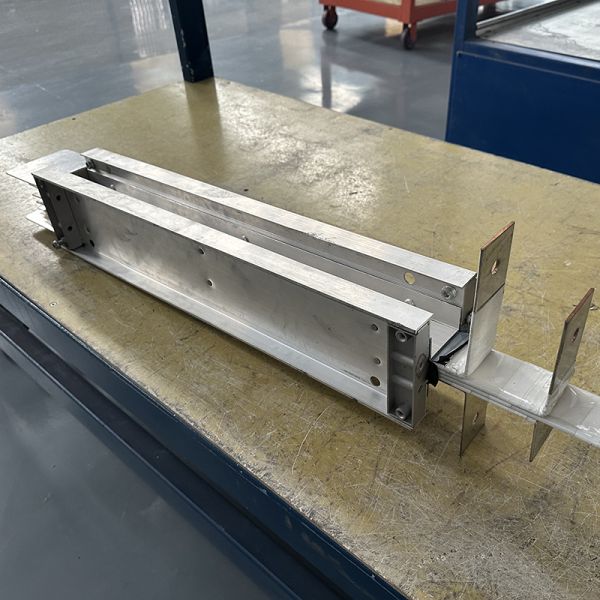

Premium Electrical Sandwich Busduct Trunking Customizable Size

FAQ:

1.Are you a trade company or a manufacturer?

Baizida Electrical Equipment Co., Ltd is a production and sales-oriented enterprise focusing on the production of power equipment, integrating design, research and development, manufacturing and technical services.

2.What are the main products of your company?

Our company specializes in the production and sales of high-quality power equipment, including power distribution equipment, electrical products, generators, charging piles, frequency converters, etc. It is widely used in residential, commercial and industrial fields.

3.How do you ensure the quality of your products?

We strictly adhere to international standards and quality management systems. All products undergo rigorous testing and inspection before leaving the factory. We also offer a product quality guarantee period to ensure that the products you purchase meet your expected performance.

4.Do you offer customization services?

Yes, we can provide customized services according to the specific needs of our customers. Whether it's product specifications, design, or functionality, our technical team can work with you to develop solutions that meet your requirements.

5.Can you print our brand on the product?

Yes, of course, we also do OEM to print client’s brand on the product
