Dense Busbar Trunking System Aluminum Sandwich Busway 400-5000A Rated Current

Name: Dense Busbar Trunking System Aluminum Sandwich Busway 4005000A Rated Current
Brand: BZIDA
Price: 1 USD

Quality Dense Busbar Trunking System Aluminum Sandwich Busway 400-5000A Rated Current for sale

Certification : ISO9001

Place of Origin : Langfang, Hebei, China

Rated Current : 200 - 6300 A

Application : Outdoor, Industrial, Electric Power Transmission

Surface treatment : Housing aluminum alloy/conductor TMY copper

Frequency : 50-60Hz

Rated Voltage : 690 V, 1000V

Working Temperature : -40℃~+80℃

Type : Power Busways

Rated frequency : 50Hz--60Hz

Brand Name : BZIDA

MOQ : 50 meters

Packaging Details : Export standard compliant

Delivery Time : 30 days

Payment Terms : 30% prepayment, full payment upon delivery

Supply Ability : 3000 meters per month

Contact Now

Customizable Size Dense Busbar Trunking System Aluminum Sandwich Busway 400-5000A Rated Current

Product Description:

Bus duct is a closed metal device composed of copper and aluminum bus columns, used to distribute large power to various components of a distributed system. In indoor low-voltage power transmission mainline projects, wires and cables have been increasingly replaced.

Nowadays, it has become an indispensable wiring method for electrical equipment and power systems in high-rise buildings, factories, etc. Due to the increasing demand for electricity in various buildings such as buildings and factories, using the original circuit wiring method, namely the conduit method, brings many difficulties during construction. Moreover, when changing the distribution system, it is almost impossible to make it simpler. However, if bus ducts are used, it is very easy to achieve the goal, and it can also make the building more beautiful.

Features:

1. Bus ducts use copper or aluminum as conductors, which have extremely high conductivity and can efficiently transmit large currents, meeting the needs of large-scale power transmission.

2. The bus duct is protected by a metal shell, which has good mechanical strength and electromagnetic shielding performance. At the same time, the internal conductors are wrapped with high-quality insulation materials, effectively preventing safety hazards such as short circuits and leakage.

3. The bus duct adopts modular design, which is easy to install, disassemble and expand. Its connection method is flexible and versatile, and can be customized and adjusted according to actual needs.

4. The bus duct has a compact structure and small volume, which can provide higher transmission capacity in limited space. Greatly saving installation space and reducing the cost of electrical engineering.

5. The maintenance of bus ducts is relatively simple and convenient. The connection part adopts bolt fastening or plug-in design, which is easy to disassemble and replace.

Technical Parameters:

Implementation Standard	IEC/EN 60 439-6, GB7251.1
System	Three-phase three-wire, Three-phase four-wire, Three-phase five-wire (with separate PE busbar), Three-phase five-wire (with casing as PE)
Altitude	≤2000m
Relative Humidity	No more than 50% at a maximum temperature of 40℃, and no more than 90% at 20℃.
Rated Insulation Voltage (Ui)	AC/ DC 1000V/800V
Rated Operating Voltage (Ue)	AC1000V/690V
Rated Frequency	50/60Hz
Conductor Material	Tin-Plated Copper or/Tin-Plated Copper-Clad Aluminum/Aluminum
Voltage Category / Pollution Degree	III/3
Horizontal Mounting Spacing	≤ 2m

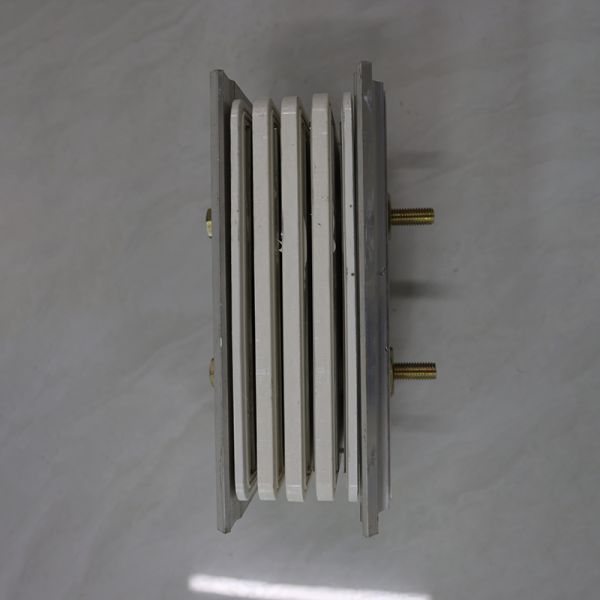

Dense Busbar Trunking System Aluminum Sandwich Busway 400-5000A Rated Current

FAQ:

1.Are you a trade company or a manufacturer?

Baizida Electrical Equipment Co., Ltd is a production and sales-oriented enterprise focusing on the production of power equipment, integrating design, research and development, manufacturing and technical services.

2.What are the main products of your company?

Our company specializes in the production and sales of high-quality power equipment, including power distribution equipment, electrical products, generators, charging piles, frequency converters, etc. It is widely used in residential, commercial and industrial fields.

3.How do you ensure the quality of your products?

We strictly adhere to international standards and quality management systems. All products undergo rigorous testing and inspection before leaving the factory. We also offer a product quality guarantee period to ensure that the products you purchase meet your expected performance.

4.Do you offer customization services?

Yes, we can provide customized services according to the specific needs of our customers. Whether it's product specifications, design, or functionality, our technical team can work with you to develop solutions that meet your requirements.

5.Can you print our brand on the product?

Yes, of course, we also do OEM to print client’s brand on the product
