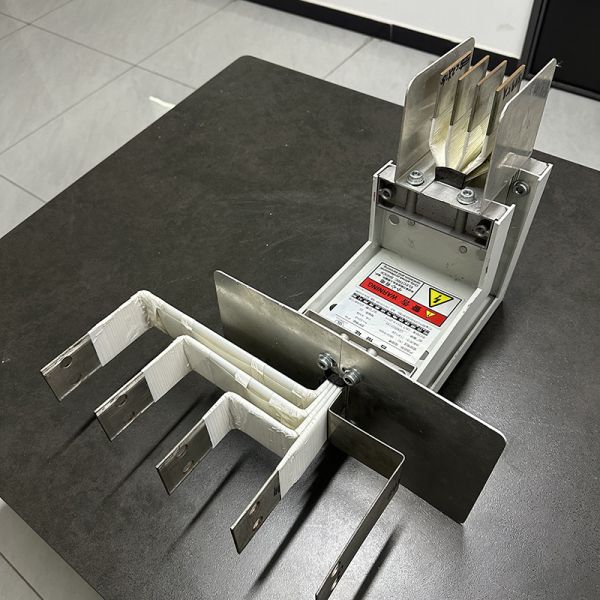

Customizable Fire Resistant Power Bus Duct System For Critical Power

Name: Customizable Fire Resistant Power Bus Duct System For Critical Power
Brand: BZIDA
Price: 1 USD

Quality Customizable Fire Resistant Power Bus Duct System For Critical Power for sale

Certification : ISO9001

Place of Origin : Langfang, Hebei, China

Rated Current : 200 - 6300 A

Application : Outdoor, Industrial, Electric Power Transmission

Surface treatment : Housing aluminum alloy/conductor TMY copper

Conductor material : Copper or aluminum

Frequency : 50-60Hz

Rated Voltage : 690 V, 1000V

Type : Power Busways

Rated frequency : 50Hz--60Hz

Brand Name : BZIDA

MOQ : 50 meters

Packaging Details : Export standard compliant

Delivery Time : 30 days

Payment Terms : 30% prepayment, full payment upon delivery

Supply Ability : 3000 meters per month

Contact Now

Customizable Fire-Resistant Busbar System For Critical Power Applications

Product Description:

Bus ducts, as an efficient, safe, and flexible distribution solution, have become an indispensable part of modern large and medium-sized buildings and industrial facilities. Understanding its basic concepts, types, application scenarios, and selection points has certain educational value for beginners engaged in related fields, as well as ordinary readers who want to understand the internal composition of buildings. It reflects the unremitting pursuit of efficiency, safety, and reliability in the field of power applications.

Features:

1. Bus ducts use copper or aluminum as conductors, which have extremely high conductivity and can efficiently transmit large currents, meeting the needs of large-scale power transmission.

2. The bus duct is protected by a metal shell, which has good mechanical strength and electromagnetic shielding performance. At the same time, the internal conductors are wrapped with high-quality insulation materials, effectively preventing safety hazards such as short circuits and leakage.

3. The bus duct adopts modular design, which is easy to install, disassemble and expand. Its connection method is flexible and versatile, and can be customized and adjusted according to actual needs.

4. The bus duct has a compact structure and small volume, which can provide higher transmission capacity in limited space. Greatly saving installation space and reducing the cost of electrical engineering.

5. The maintenance of bus ducts is relatively simple and convenient. The connection part adopts bolt fastening or plug-in design, which is easy to disassemble and replace.

Technical Parameters:

Implementation Standard	IEC/EN 60 439-6, GB7251.1
System	Three-phase three-wire, Three-phase four-wire, Three-phase five-wire (with separate PE busbar), Three-phase five-wire (with casing as PE)
Ambient Temperature	-25/+40/+35 (Outdoor Type -40/+40/+35)
Altitude	≤2000m
Relative Humidity	No more than 50% at a maximum temperature of 40℃, and no more than 90% at 20℃.
Enclosure Material/Surface Treatment	Aluminum Alloy / Powder Coating
Conductor Material	Tin-Plated Copper or/Tin-Plated Copper-Clad Aluminum/Aluminum
Voltage Category / Pollution Degree	III/3
Horizontal Mounting Spacing	≤ 2m

Detailed Parameters
Current (A)	Short-time Withstand Current KA	Peak Withstand Current KA	Alternating Current Resistance (Ω)/m	Inductive Reactance/m (Ω)/m	Impedance/m (Ω)/m
Current (A)	Short-time Withstand Current KA	Peak Withstand Current KA	Alternating Current Resistance (Ω)/m	Inductive Reactance/m (Ω)/m	Impedance/m (Ω)/m
400	30	63	0.151	0.042	0.157
630			0.105	0.035	0.111
800			0.080	0.031	0.086
1000	50	105	0.061	0.027	0.067
1250	50	105	0.044	0.022	0.050
3150	80	176	0.016	0.007	0.017
4000	100	220	0.012	0.003	0.013
5000	100	220	0.009	0.002	0.009
6300	120	264	0.007	0.001	0.007

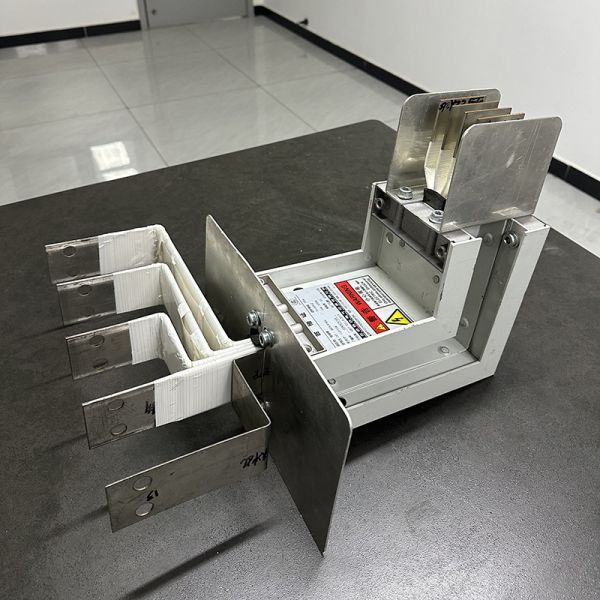

Customizable Fire Resistant Power Bus Duct System For Critical Power

FAQ:

1.Are you a trade company or a manufacturer?

Baizida Electrical Equipment Co., Ltd is a production and sales-oriented enterprise focusing on the production of power equipment, integrating design, research and development, manufacturing and technical services.

2.What are the main products of your company?

Our company specializes in the production and sales of high-quality power equipment, including power distribution equipment, electrical products, generators, charging piles, frequency converters, etc. It is widely used in residential, commercial and industrial fields.

3.How do you ensure the quality of your products?

We strictly adhere to international standards and quality management systems. All products undergo rigorous testing and inspection before leaving the factory. We also offer a product quality guarantee period to ensure that the products you purchase meet your expected performance.

4.Do you offer customization services?

Yes, we can provide customized services according to the specific needs of our customers. Whether it's product specifications, design, or functionality, our technical team can work with you to develop solutions that meet your requirements.

5.Can you print our brand on the product?

Yes, of course, we also do OEM to print client’s brand on the product
