Compact Electrical Copper And Aluminium Busway Busbar Trunking System

Name: Compact Electrical Copper And Aluminium Busway Busbar Trunking System
Brand: BZIDA
Price: 1 USD

Quality Compact Electrical Copper And Aluminium Busway Busbar Trunking System for sale

Certification : ISO9001

Place of Origin : Langfang, Hebei, China

Rated Current : 200 - 6300 A

Application : Outdoor, Industrial, Electric Power Transmission

Surface treatment : Housing aluminum alloy/conductor TMY copper

Frequency : 50-60Hz

Rated Voltage : 690 V, 1000V

Working Temperature : -40℃~+80℃

Type : Power Busways

Rated frequency : 50Hz--60Hz

Brand Name : BZIDA

MOQ : 50 meters

Packaging Details : Export standard compliant

Delivery Time : 30 days

Payment Terms : 30% prepayment, full payment upon delivery

Supply Ability : 3000 meters per month

Contact Now

Compact Electrical Copper And Aluminium Bus Duct Busbar Trunking System Busway

Product Description:

In the power system, bus ducts play an important role. It is a closed device made of metal sheet, specifically designed to transmit and distribute high current, low voltage electricity. Despite its simple name, its internal structure is quite complex, consisting of bus conductors, shells, insulation materials, and support components. And it is particularly flexible, able to assemble and expand according to actual needs.

Bus ducts are enclosed complete sets of equipment formed by conductor systems for all types of load distribution and control of electrical energy, suitable for industrial, commercial, and similar purposes. The conductor system consists of busbars separated and supported by insulating materials in pipelines, slots, or similar enclosures.

Features:

1. Bus ducts use copper or aluminum as conductors, which have extremely high conductivity and can efficiently transmit large currents, meeting the needs of large-scale power transmission.

2. The bus duct is protected by a metal shell, which has good mechanical strength and electromagnetic shielding performance. At the same time, the internal conductors are wrapped with high-quality insulation materials, effectively preventing safety hazards such as short circuits and leakage.

3. The bus duct adopts modular design, which is easy to install, disassemble and expand. Its connection method is flexible and versatile, and can be customized and adjusted according to actual needs.

4. The bus duct has a compact structure and small volume, which can provide higher transmission capacity in limited space. Greatly saving installation space and reducing the cost of electrical engineering.

5. The maintenance of bus ducts is relatively simple and convenient. The connection part adopts bolt fastening or plug-in design, which is easy to disassemble and replace.

Technical Parameters:

Implementation Standard	IEC/EN 60 439-6, GB7251.1
Ingress Protection (IP) Rating	IP54, IP66, IP68
Rated Insulation Voltage (Ui)	AC/ DC 1000V/800V
Rated Operating Voltage (Ue)	AC1000V/690V
Rated Frequency	50/60Hz
Enclosure Material/Surface Treatment	Aluminum Alloy / Powder Coating
Conductor Material	Tin-Plated Copper or/Tin-Plated Copper-Clad Aluminum/Aluminum
Voltage Category / Pollution Degree	III/3
Horizontal Mounting Spacing	≤ 2m

Detailed Parameters
Current (A)	Short-time Withstand Current KA	Peak Withstand Current KA	Alternating Current Resistance (Ω)/m	Inductive Reactance/m (Ω)/m	Impedance/m (Ω)/m
Current (A)	Short-time Withstand Current KA	Peak Withstand Current KA	Alternating Current Resistance (Ω)/m	Inductive Reactance/m (Ω)/m	Impedance/m (Ω)/m
1000	50	105	0.061	0.027	0.067
1250	50	105	0.044	0.022	0.050
1600	65	143	0.033	0.018	0.037
2000			0.025	0.014	0.028
2500			0.018	0.009	0.020
3150	80	176	0.016	0.007	0.017
4000	100	220	0.012	0.003	0.013
5000	100	220	0.009	0.002	0.009
6300	120	264	0.007	0.001	0.007

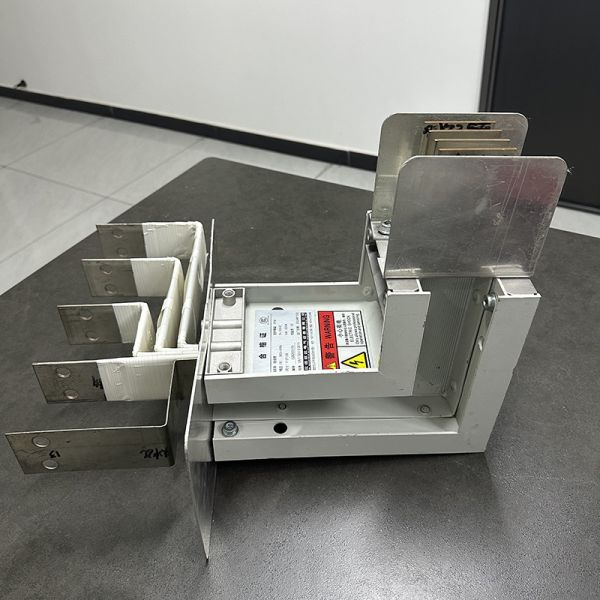

Compact Electrical Copper And Aluminium Busway Busbar Trunking System

FAQ:

1.Are you a trade company or a manufacturer?

Baizida Electrical Equipment Co., Ltd is a production and sales-oriented enterprise focusing on the production of power equipment, integrating design, research and development, manufacturing and technical services.

2.What are the main products of your company?

Our company specializes in the production and sales of high-quality power equipment, including power distribution equipment, electrical products, generators, charging piles, frequency converters, etc. It is widely used in residential, commercial and industrial fields.

3.How do you ensure the quality of your products?

We strictly adhere to international standards and quality management systems. All products undergo rigorous testing and inspection before leaving the factory. We also offer a product quality guarantee period to ensure that the products you purchase meet your expected performance.

4.Do you offer customization services?

Yes, we can provide customized services according to the specific needs of our customers. Whether it's product specifications, design, or functionality, our technical team can work with you to develop solutions that meet your requirements.

5.Can you print our brand on the product?

Yes, of course, we also do OEM to print client’s brand on the product
