Power Busway Electrical System Dense Copper 3 Phase 5 Wire Bus Duct Sandwich Type

Name: Power Busway Electrical System Dense Copper 3 Phase 5 Wire Bus Duct Sandwich Type
Brand: BZIDA
Price: 1 USD

Quality Power Busway Electrical System Dense Copper 3 Phase 5 Wire Bus Duct Sandwich Type for sale

Certification : ISO9001

Place of Origin : Langfang, Hebei, China

Material : Aluminum, copper

Application : Outdoor, Industrial, Electric Power Transmission

Conductor material : Copper or aluminum

Frequency : 50-60Hz

Degree of protection : IP54/IP66

Working Temperature : -40℃~+80℃

Type : Power Busways

Rated frequency : 50Hz--60Hz

Brand Name : BZIDA

MOQ : 50 meters

Packaging Details : Export standard compliant

Delivery Time : 30 days

Payment Terms : 30% prepayment, full payment upon delivery

Supply Ability : 3000 meters per month

Contact Now

Sandwich Busway Dense Copper Electrical Compact Factory Direct Sales 3-Phase 5-Wire Sandwich Busway

Product Description:

Bus ducts have several core advantages. Firstly, it has a large current carrying capacity. A standard bus duct can easily carry thousands of amperes of current, which is difficult for ordinary cables to achieve. Secondly, the installation is flexible, and the modular design allows it to be assembled and expanded flexibly according to the site conditions, adapting to different building structures and layout changes. Once again, it has high safety, with its metal casing providing good mechanical protection and grounding continuity, and the internal insulation material effectively preventing electric shock and short circuit risks. Finally, it is easy to maintain. The joint parts are usually designed for high reliability connections and are easy to inspect and test. Branch circuits can also be easily led out through plug-in boxes.

Features:

1. Bus ducts use copper or aluminum as conductors, which have extremely high conductivity and can efficiently transmit large currents, meeting the needs of large-scale power transmission.

2. The bus duct is protected by a metal shell, which has good mechanical strength and electromagnetic shielding performance. At the same time, the internal conductors are wrapped with high-quality insulation materials, effectively preventing safety hazards such as short circuits and leakage.

3. The bus duct adopts modular design, which is easy to install, disassemble and expand. Its connection method is flexible and versatile, and can be customized and adjusted according to actual needs.

4. The bus duct has a compact structure and small volume, which can provide higher transmission capacity in limited space. Greatly saving installation space and reducing the cost of electrical engineering.

5. The maintenance of bus ducts is relatively simple and convenient. The connection part adopts bolt fastening or plug-in design, which is easy to disassemble and replace.

Technical Parameters:

Implementation Standard	IEC/EN 60 439-6, GB7251.1
System	Three-phase three-wire, Three-phase four-wire, Three-phase five-wire (with separate PE busbar), Three-phase five-wire (with casing as PE)
Rated Insulation Voltage (Ui)	AC/ DC 1000V/800V
Rated Operating Voltage (Ue)	AC1000V/690V
Rated Frequency	50/60Hz
Enclosure Material/Surface Treatment	Aluminum Alloy / Powder Coating
Conductor Material	Tin-Plated Copper or/Tin-Plated Copper-Clad Aluminum/Aluminum
Voltage Category / Pollution Degree	III/3
Horizontal Mounting Spacing	≤ 2m

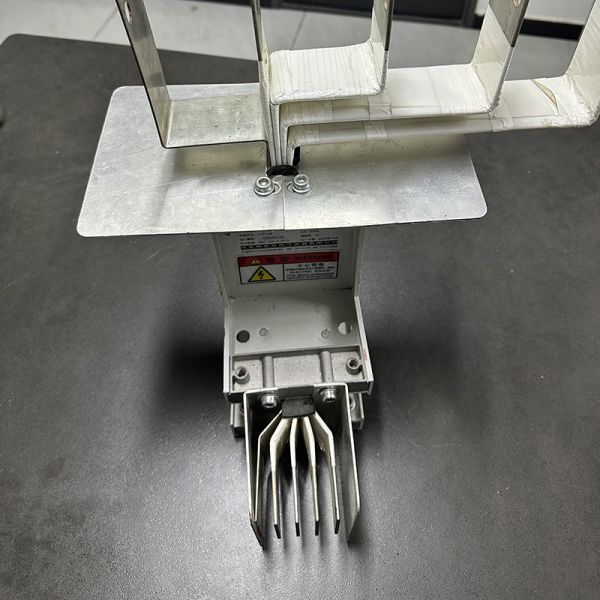

Power Busway Electrical System Dense Copper 3 Phase 5 Wire Bus Duct Sandwich Type

FAQ:

1.Are you a trade company or a manufacturer?

Baizida Electrical Equipment Co., Ltd is a production and sales-oriented enterprise focusing on the production of power equipment, integrating design, research and development, manufacturing and technical services.

2.What are the main products of your company?

Our company specializes in the production and sales of high-quality power equipment, including power distribution equipment, electrical products, generators, charging piles, frequency converters, etc. It is widely used in residential, commercial and industrial fields.

3.How do you ensure the quality of your products?

We strictly adhere to international standards and quality management systems. All products undergo rigorous testing and inspection before leaving the factory. We also offer a product quality guarantee period to ensure that the products you purchase meet your expected performance.

4.Do you offer customization services?

Yes, we can provide customized services according to the specific needs of our customers. Whether it's product specifications, design, or functionality, our technical team can work with you to develop solutions that meet your requirements.

5.Can you print our brand on the product?

Yes, of course, we also do OEM to print client’s brand on the product
