Aluminum Alloy And Copper Sandwich Custom Busway System Electrical Line Power Busways

Name: Aluminum Alloy And Copper Sandwich Custom Busway System Electrical Line Power Busways
Brand: BZIDA
Price: 1 USD

Quality Aluminum Alloy And Copper Sandwich Custom Busway System Electrical Line Power Busways for sale

Certification : ISO9001

Place of Origin : Langfang, Hebei, China

Rated Current : 200 - 6300 A

Material : Aluminum, copper

Application : Outdoor, Industrial, Electric Power Transmission

Surface treatment : Housing aluminum alloy/conductor TMY copper

Conductor material : Copper or aluminum

Frequency : 50-60Hz

Type : Power Busways

Rated frequency : 50Hz--60Hz

Brand Name : BZIDA

MOQ : 50 meters

Packaging Details : Export standard compliant

Delivery Time : 30 days

Payment Terms : 30% prepayment, full payment upon delivery

Supply Ability : 3000 meters per month

Contact Now

Aluminum Alloy and Copper Sandwich Power Electrical Busway System Electrical Bus Bar Busbar Line Electrical Supplies

Product Description:

Bus duct is a closed distribution device composed of copper or aluminum conductive bars, insulation materials, metal shells, and accessories. Its core function is to replace traditional cables and achieve efficient distribution of high current electrical energy. Its structure includes the following key parts:

1. Conductive busbar: made of copper or aluminum material, responsible for current transmission function, with a current capacity range covering 250A to 6300A, suitable for three-phase four wire and three-phase five wire power supply and distribution systems.

2. Insulation layer: a polymer material (such as polyester film, epoxy resin) that wraps the conductive strip to prevent phase to phase short circuits and ensure electrical safety.

3. Metal shell: usually made of steel plate or aluminum alloy material, providing mechanical protection, electromagnetic shielding, and heat dissipation functions. Some shell designs (such as tile grooves) can enhance structural strength.

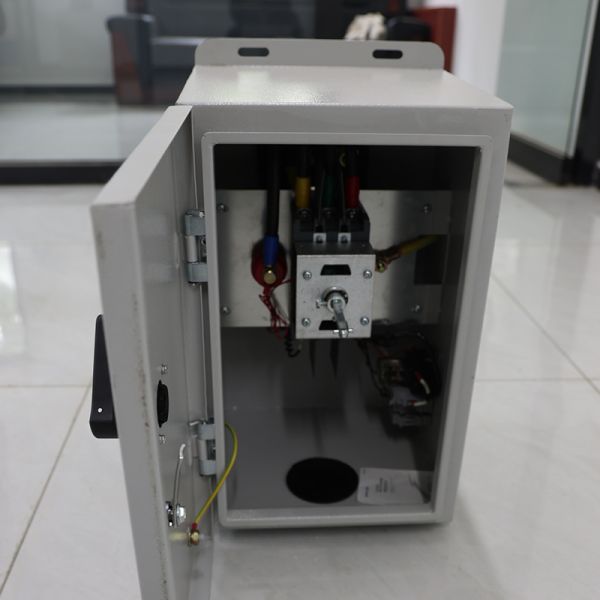

4. Plug in device: including junction box or plug-in box, supporting flexible connection of branch circuits, realizing modular expansion of power distribution system.

Features:

1. Bus ducts use copper or aluminum as conductors, which have extremely high conductivity and can efficiently transmit large currents, meeting the needs of large-scale power transmission.

2. The bus duct is protected by a metal shell, which has good mechanical strength and electromagnetic shielding performance. At the same time, the internal conductors are wrapped with high-quality insulation materials, effectively preventing safety hazards such as short circuits and leakage.

3. The bus duct adopts modular design, which is easy to install, disassemble and expand. Its connection method is flexible and versatile, and can be customized and adjusted according to actual needs.

4. The maintenance of bus ducts is relatively simple and convenient. The connection part adopts bolt fastening or plug-in design, which is easy to disassemble and replace.

Technical Parameters:

Implementation Standard	IEC/EN 60 439-6, GB7251.1
System	Three-phase three-wire, Three-phase four-wire, Three-phase five-wire (with separate PE busbar), Three-phase five-wire (with casing as PE)
Ambient Temperature	-25/+40/+35 (Outdoor Type -40/+40/+35)
Altitude	≤2000m
Relative Humidity	No more than 50% at a maximum temperature of 40℃, and no more than 90% at 20℃.
Ingress Protection (IP) Rating	IP54, IP66, IP68
Enclosure Material/Surface Treatment	Aluminum Alloy / Powder Coating
Conductor Material	Tin-Plated Copper or/Tin-Plated Copper-Clad Aluminum/Aluminum
Voltage Category / Pollution Degree	III/3
Horizontal Mounting Spacing	≤ 2m

Aluminum Alloy And Copper Sandwich Custom Busway System Electrical Line Power Busways

FAQ:

1.Are you a trade company or a manufacturer?

Baizida Electrical Equipment Co., Ltd is a production and sales-oriented enterprise focusing on the production of power equipment, integrating design, research and development, manufacturing and technical services.

2.What are the main products of your company?

Our company specializes in the production and sales of high-quality power equipment, including power distribution equipment, electrical products, generators, charging piles, frequency converters, etc. It is widely used in residential, commercial and industrial fields.

3.How do you ensure the quality of your products?

We strictly adhere to international standards and quality management systems. All products undergo rigorous testing and inspection before leaving the factory. We also offer a product quality guarantee period to ensure that the products you purchase meet your expected performance.

4.Do you offer customization services?

Yes, we can provide customized services according to the specific needs of our customers. Whether it's product specifications, design, or functionality, our technical team can work with you to develop solutions that meet your requirements.

5.Can you print our brand on the product?

Yes, of course, we also do OEM to print client’s brand on the product
