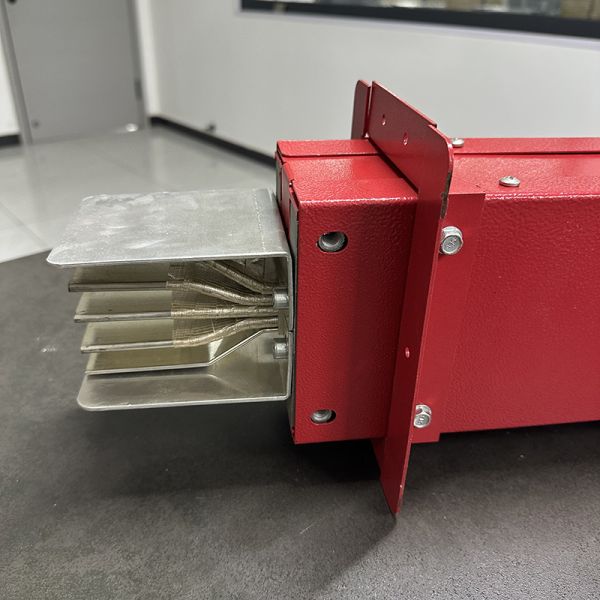

Closed Bus Duct 1250 Amp Busway Copper Electrical Compact Bus Duct/Busbar Trunking System
Product Description:
Bus ducts can be divided into starting end, straight through, L-shaped bend, etc. according to their purposes, and can be classified into air type, dense insulation, and high-strength plug-in according to their insulation methods. There are many classifications of bus ducts, which can be divided into starting bus ducts, straight through bus ducts (with or without sockets), L-shaped vertical (horizontal) bent bus ducts, etc. according to their purposes. According to the insulation method, it can be divided into air type, dense insulation, and high-strength plug-in bus duct. In addition, there are various structural types such as fire-resistant, resin insulated, and sliding contact, as well as a variety of shell material options such as steel shell, aluminum alloy shell, and steel aluminum hybrid shell.
Features:
1. High safety and reliability: The fully enclosed design effectively prevents accidental electric shock to personnel, and the protection level can reach IP40 or above. Using high-quality insulation materials, the insulation resistance is high (normal ≥ 20M Ω, still ≥ 100M Ω at 100 ℃). Equipped with reliable grounding devices, it can quickly lead into the ground in case of leakage, ensuring personal safety.
2. Large transmission capacity: The conductive busbar has a large cross-sectional area, low resistance, and can carry larger currents (up to 6300A). The metal shell has good heat dissipation performance, which can timely dissipate working heat and ensure stability during long-term high current operation.
3. Easy installation and maintenance: Modular design enables quick and convenient connection between various bus duct units, reducing installation time and labor intensity. The plug-in box combination power supply method allows for the adjustment of the position of electrical equipment without the need to change the power supply system, only the plug-in interface needs to be adjusted.
4. Good economy: Although the initial investment is high, the long-term maintenance cost is 50% lower. The factory's complete production quality is guaranteed, with higher precision and better consistency compared to on-site production, reducing construction and installation workload.
5. Strong environmental adaptability: capable of working in a wide temperature range from -40 ℃ to+70 ℃, adaptable to various climatic conditions. It can maintain stable performance under mechanical stresses such as vibration and impact.
Technical Parameters:
| System | Three-phase three-wire, Three-phase four-wire, Three-phase five-wire (with separate PE busbar), Three-phase five-wire (with casing
as PE) |
| Ambient Temperature | -25/+40/+35 (Outdoor Type -40/+40/+35) |
| Altitude | ≤2000m |
| Ingress Protection (IP) Rating | IP54, IP66, IP68 |
| Rated Insulation Voltage (Ui) | AC/ DC 1000V/800V |
| Rated Operating Voltage (Ue) | AC1000V/690V |
| Rated Frequency | 50/60Hz |
| Conductor Material | Tin-Plated Copper or/Tin-Plated Copper-Clad Aluminum/Aluminum |
| Voltage Category / Pollution Degree | III/3 |
| |
| | Short-time Withstand Current KA | Peak Withstand Current KA | Alternating Current Resistance (Ω)/m | Inductive Reactance/m (Ω)/m | |
| | | | | | |
| | | | |
| | | | | | |
| | | | |
| | | | | | |
| | | | |
| | | | | | |
| | | | |
| | | | | | |
FAQ:
1.Are you a trade company or a manufacturer?
Baizida Electrical Equipment Co., Ltd is a production and sales-oriented enterprise focusing on the production of power equipment, integrating design, research and development, manufacturing and technical services.
2.What are the main products of your company?
Our company specializes in the production and sales of high-quality power equipment, including power distribution equipment, electrical products, generators, charging piles, frequency converters, etc. It is widely used in residential, commercial and industrial fields.
3.How do you ensure the quality of your products?
We strictly adhere to international standards and quality management systems. All products undergo rigorous testing and inspection before leaving the factory. We also offer a product quality guarantee period to ensure that the products you purchase meet your expected performance.
4.Do you offer customization services?
Yes, we can provide customized services according to the specific needs of our customers. Whether it's product specifications, design, or functionality, our technical team can work with you to develop solutions that meet your requirements.
5.Can you print our brand on the product?
Yes, of course, we also do OEM to print client’s brand on the product
