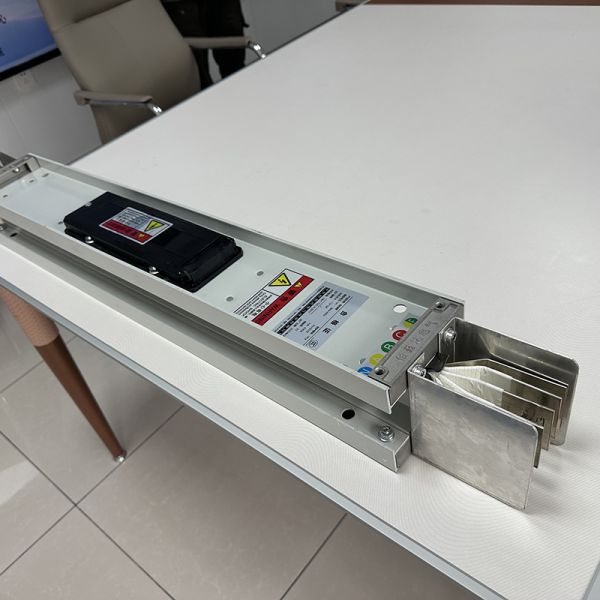

Power Distribution Sandwich Low Voltage Busbar Trunking System Copper Aluminum

Name: Power Distribution Sandwich Low Voltage Busbar Trunking System Copper Aluminum
Brand: BZIDA
Price: 1 USD

Quality Power Distribution Sandwich Low Voltage Busbar Trunking System Copper Aluminum for sale

Certification : ISO9001

Place of Origin : Langfang, Hebei, China

Material : Aluminum, copper

Surface treatment : Housing aluminum alloy/conductor TMY copper

Frequency : 50-60Hz

Degree of protection : IP54/IP66

Rated Voltage : 690 V, 1000V

Working Temperature : -40℃~+80℃

Type : Power Busways

Rated frequency : 50Hz--60Hz

Brand Name : BZIDA

MOQ : 50 meters

Packaging Details : Export standard compliant

Delivery Time : 30 days

Payment Terms : 30% prepayment, full payment upon delivery

Supply Ability : 3000 meters per month

Contact Now

Low Voltage Copper Aluminum Power Distribution Sandwich Busbar Trunking System

Product Description:

Composed of a metal plate protective shell, conductive bars, insulation materials, and accessories, it can be designed as a plug-in type. Enclosed bus duct, abbreviated as bus duct, is a bus system composed of metal plates (such as steel or aluminum plates) to protect the outer shell, conductive bars, insulation materials, and accessories. It can be designed as a plug-in type, with plug-in junction boxes at regular intervals, or a power supply type, without a junction box in the middle. In the power supply system of high-rise buildings, bus ducts are often used as the main line and installed vertically along the wall once or multiple times.

Features:

1. High safety and reliability: The fully enclosed design effectively prevents accidental electric shock to personnel, and the protection level can reach IP40 or above. Using high-quality insulation materials, the insulation resistance is high (normal ≥ 20M Ω, still ≥ 100M Ω at 100 ℃). Equipped with reliable grounding devices, it can quickly lead into the ground in case of leakage, ensuring personal safety.

2. Large transmission capacity: The conductive busbar has a large cross-sectional area, low resistance, and can carry larger currents (up to 6300A). The metal shell has good heat dissipation performance, which can timely dissipate working heat and ensure stability during long-term high current operation.

3. Easy installation and maintenance: Modular design enables quick and convenient connection between various bus duct units, reducing installation time and labor intensity. The plug-in box combination power supply method allows for the adjustment of the position of electrical equipment without the need to change the power supply system, only the plug-in interface needs to be adjusted.

4. Good economy: Although the initial investment is high, the long-term maintenance cost is 50% lower. The factory's complete production quality is guaranteed, with higher precision and better consistency compared to on-site production, reducing construction and installation workload.

Technical Parameters:

Implementation Standard	IEC/EN 60 439-6, GB7251.1
Ambient Temperature	-25/+40/+35 (Outdoor Type -40/+40/+35)
Altitude	≤2000m
Relative Humidity	No more than 50% at a maximum temperature of 40℃, and no more than 90% at 20℃.
Rated Insulation Voltage (Ui)	AC/ DC 1000V/800V
Rated Operating Voltage (Ue)	AC1000V/690V
Enclosure Material/Surface Treatment	Aluminum Alloy / Powder Coating
Conductor Material	Tin-Plated Copper or/Tin-Plated Copper-Clad Aluminum/Aluminum
Voltage Category / Pollution Degree	III/3

Detailed Parameters
Current (A)	Short-time Withstand Current KA	Peak Withstand Current KA	Alternating Current Resistance (Ω)/m	Inductive Reactance/m (Ω)/m	Impedance/m (Ω)/m
Current (A)	Short-time Withstand Current KA	Peak Withstand Current KA	Alternating Current Resistance (Ω)/m	Inductive Reactance/m (Ω)/m	Impedance/m (Ω)/m
400	30	63	0.151	0.042	0.157
630	30	63	0.105	0.035	0.111
1000	50	105	0.061	0.027	0.067
1250	50	105	0.044	0.022	0.050
1600	65	143	0.033	0.018	0.037
3150	80	176	0.016	0.007	0.017
4000	100	220	0.012	0.003	0.013
5000	100	220	0.009	0.002	0.009

Power Distribution Sandwich Low Voltage Busbar Trunking System Copper Aluminum

FAQ:

1.Are you a trade company or a manufacturer?

Baizida Electrical Equipment Co., Ltd is a production and sales-oriented enterprise focusing on the production of power equipment, integrating design, research and development, manufacturing and technical services.

2.What are the main products of your company?

Our company specializes in the production and sales of high-quality power equipment, including power distribution equipment, electrical products, generators, charging piles, frequency converters, etc. It is widely used in residential, commercial and industrial fields.

3.How do you ensure the quality of your products?

We strictly adhere to international standards and quality management systems. All products undergo rigorous testing and inspection before leaving the factory. We also offer a product quality guarantee period to ensure that the products you purchase meet your expected performance.

4.Do you offer customization services?

Yes, we can provide customized services according to the specific needs of our customers. Whether it's product specifications, design, or functionality, our technical team can work with you to develop solutions that meet your requirements.

5.Can you print our brand on the product?

Yes, of course, we also do OEM to print client’s brand on the product
