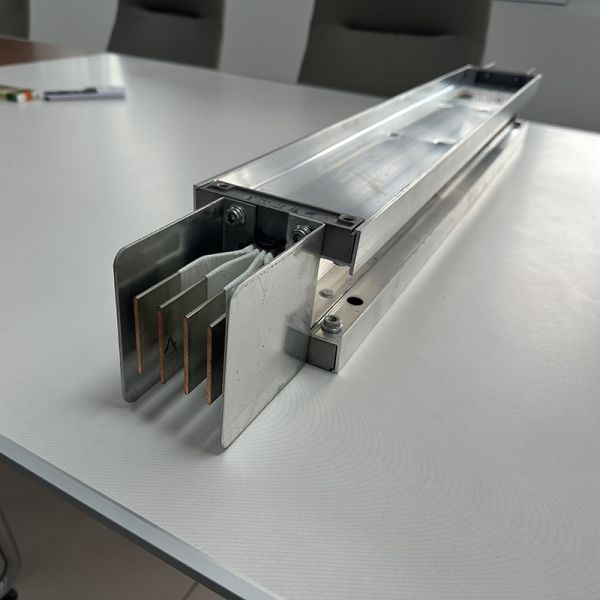

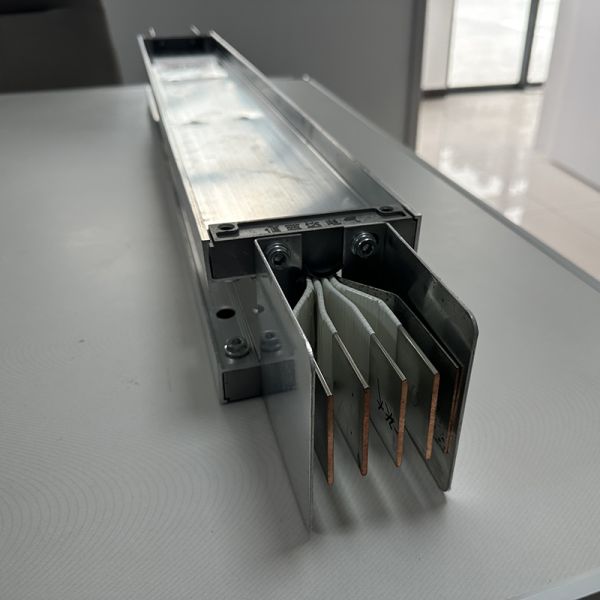

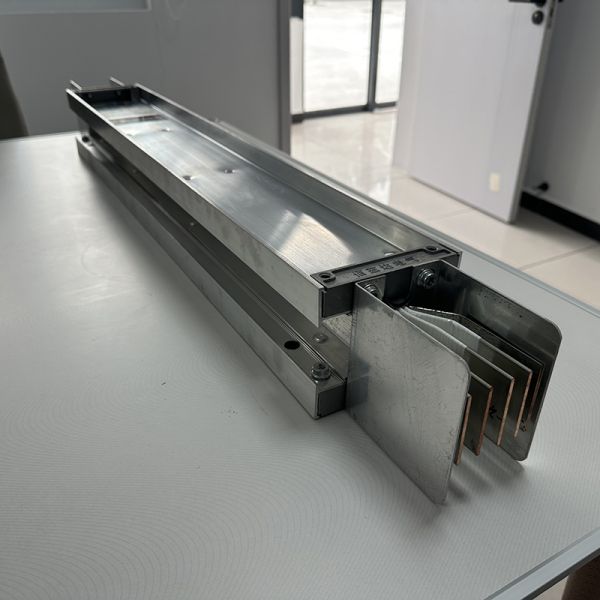

Customizable 5mm Bus Duct System Busbar Trunking System Aluminum Sandwich Busway
Product Description:
It has a rated voltage of 380V/660V, a rated insulation voltage of 1000V AC, and operates at a rated frequency of 50HZ. The current range is wide, ranging from 400A to 6300A, and it also has a heat resistance level of ≥ B and an insulation level of ≥ B. In terms of power frequency withstand voltage, the bus duct can withstand 3500V AV without breakdown or flashover testing, ensuring its safety and reliability.
There are clear requirements for insulation materials and bus ducts. Firstly, the insulation performance must be excellent; Secondly, the long-term working temperature should not be lower than 105 ℃; In addition, it also needs to have the characteristics of flame retardancy, non carbonization, no toxic gas during decomposition, and aging resistance. In practical applications, polyester film is a commonly used insulation material that can maintain excellent insulation performance at a temperature of 130 ℃ and a voltage of 10000V, and has high cost-effectiveness. However, it should be noted that certain insulation materials such as polytetrafluoroethylene tape can produce toxic gases during high-temperature decomposition, so special care should be taken when using them.
Features:
1. High current carrying capacity to meet high current demands
The rated current of a single bus duct can reach 6300A, which is much higher than that of traditional cables (up to about 1600A).
In large factories, data centers, airports, and other scenarios, bus ducts can stably carry high loads.
2. Flexible installation, saving space and time
The bus duct adopts modular design, plug and play, and can add or remove branches without power outage.
Compared to cable trays, it saves space, reduces wiring complexity, and shortens the construction period by more than 30%.
3. Safe, reliable, and easy to maintain
Metal shell protection, fire-resistant, waterproof, and corrosion-resistant. Some products, such as "slot public safety bus duct", have achieved IP68 protection level.
Daily maintenance only requires checking the temperature rise of joints and the tightening of bolts, which is more than 50% cheaper than cable maintenance costs.
Technical Parameters:
| | Electric Power Transmission |
| | |
| | |
| | |
| | |
| | |
| | |
FAQ:
1.Are you a trade company or a manufacturer?
Baizida Electrical Equipment Co., Ltd is a production and sales-oriented enterprise focusing on the production of power equipment, integrating design, research and development, manufacturing and technical services.
2.What are the main products of your company?
Our company specializes in the production and sales of high-quality power equipment, including power distribution equipment, electrical products, generators, charging piles, frequency converters, etc. It is widely used in residential, commercial and industrial fields.
3.How do you ensure the quality of your products?
We strictly adhere to international standards and quality management systems. All products undergo rigorous testing and inspection before leaving the factory. We also offer a product quality guarantee period to ensure that the products you purchase meet your expected performance.
4.Do you offer customization services?
Yes, we can provide customized services according to the specific needs of our customers. Whether it's product specifications, design, or functionality, our technical team can work with you to develop solutions that meet your requirements.
5.Can you print our brand on the product?
Yes, of course, we also do OEM to print client’s brand on the product
