Multi Layer Fireproof Design Air Insulated Busbar Trunking Low Voltage Enclosed Bus Bar

Multi-Layer Fireproof Design Fire-Resistant Low-Voltage Enclosed Busway

Product Description:

The design of fire-resistant busbar trunking is compact and reasonable, occupying small space and efficiently utilizing installation space without interfering with the normal operation of other equipment. This design not only saves space, but also makes the installation process simple and fast, thereby saving a lot of time and effort.

Fireproof busbar trunking has extremely high flexibility. It can be customized and expanded according to actual needs, whether in terms of length, specifications, or configuration, to meet the personalized needs of different users. This flexibility enables fire-resistant bus ducts to play an important role in both power and fire protection systems.

Features:

1. Using inorganic insulation materials (such as mica tape, mineral insulation, etc.) and fireproof coating treatment, the circuit integrity can be maintained at a high temperature of 950 ℃ and pass a 1.5-hour combustion test. ‌

2. By designing double-layer hollow side panels, heat dissipation areas, and convection holes, the heat dissipation efficiency is improved to adapt to high current transmission scenarios. ‌

3. The shell is made of cold-rolled steel plate or stainless steel material, combined with fireproof insulation layer (such as rock wool, aluminum silicate fiber), effectively isolating high temperature gases and open flames. ‌

4. Suitable for scenarios with high fire prevention requirements such as chemical, metallurgical, airport, nuclear power plant, underground pipe gallery, etc., supporting horizontal/vertical installation

Technical Parameters:

FAQ:

fireproof enclosed bus bar

fireproof air insulated busbar trunking

enclosed air insulated busbar trunking

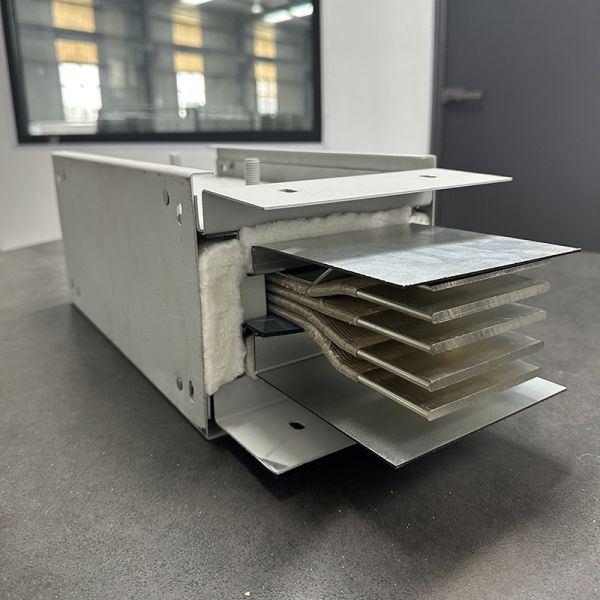

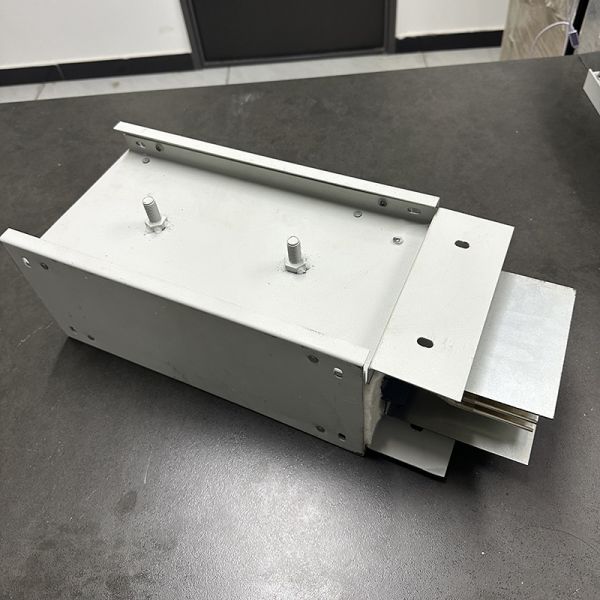

Multi Layer Fireproof Design Air Insulated Busbar Trunking Low Voltage Enclosed Bus Bar Images
