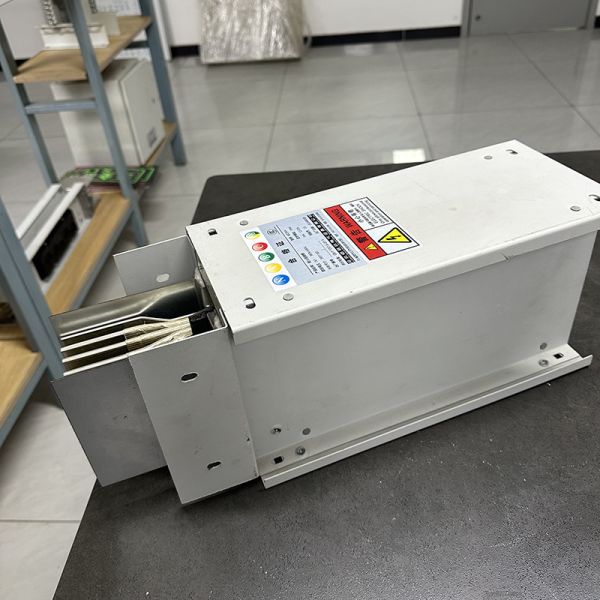

Intensive Fire Rated Bus Duct Cable Enclosure Aluminium Alloy IP54 IP66

Name: Intensive Fire Rated Bus Duct Cable Enclosure Aluminium Alloy IP54 IP66
Brand: BZIDA
Price: 1 USD

Quality Intensive Fire Rated Bus Duct Cable Enclosure Aluminium Alloy IP54 IP66 for sale

Certification : ISO9001

Place of Origin : Langfang, Hebei, China

Conductor material : Copper/aluminium

Rated Current : 400A-4000A

Rated Voltage : 380 V

Usage : Electricity Transmission Project

Type : Fire resistant bus duct

Surface treatment : Tin Plated on Contact

Protection Level : IP54/IP66

Packing : Wooden Case

Brand Name : BZIDA

MOQ : 50 meters

Packaging Details : Export standard compliant

Delivery Time : 30 days

Payment Terms : 30% prepayment, full payment upon delivery

Supply Ability : 3000 meters per month

Contact Now

Intensive Busbar Duct Cable Enclosure Fire-Resistant Aluminium Alloy Copper Busbar For Air Busbar Duct

Product Description:

The busbar trunking system adopts modular design, similar to splicing pipes, and can be flexibly combined with accessories such as straight sections, elbows, tees, and plug-in boxes to adapt to different wiring paths. The design of the plug-in box makes it very convenient to lead out the branch power supply, and it can be operated without cutting off the power. Daily maintenance mainly involves regularly checking the temperature rise and fastening of joints, which is much less labor-intensive than traditional cables.

The design lifespan of high-quality fire-resistant bus ducts can reach 50 years and can be reused. The insulation material used does not release toxic gases during combustion and meets environmental protection requirements.

Features:

1. Using inorganic insulation materials (such as mica tape, mineral insulation, etc.) and fireproof coating treatment, the circuit integrity can be maintained at a high temperature of 950 ℃ and pass a 1.5-hour combustion test. ‌

2. By designing double-layer hollow side panels, heat dissipation areas, and convection holes, the heat dissipation efficiency is improved to adapt to high current transmission scenarios. ‌

3. The shell is made of cold-rolled steel plate or stainless steel material, combined with fireproof insulation layer (such as rock wool, aluminum silicate fiber), effectively isolating high temperature gases and open flames. ‌

4. Suitable for scenarios with high fire prevention requirements such as chemical, metallurgical, airport, nuclear power plant, underground pipe gallery, etc., supporting horizontal/vertical installation

Technical Parameters:

Application	Electric Power Transmission
Size	Width 128/144mm
Protection Level	IP54/IP66
Rated Voltage	380/660 V
Phase	5 Wires
Certificate	CCC CE ISO
Warranty	2 Years
Packing	Wooden Case

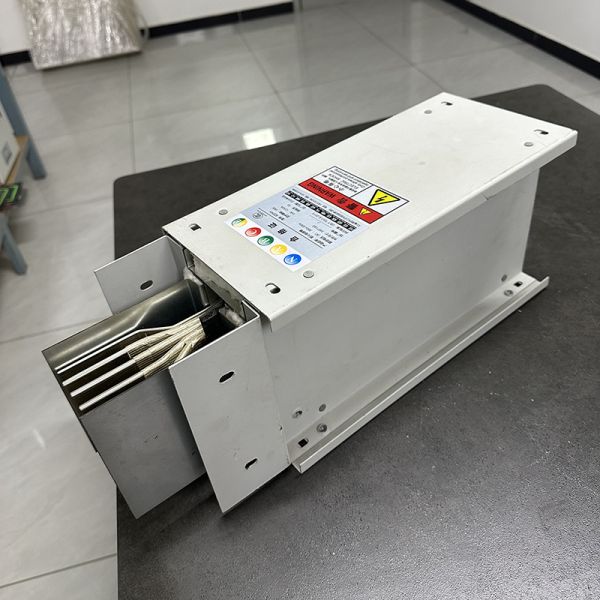

Intensive Fire Rated Bus Duct Cable Enclosure Aluminium Alloy IP54 IP66

FAQ:

1.Are you a trade company or a manufacturer?

Baizida Electrical Equipment Co., Ltd is a production and sales-oriented enterprise focusing on the production of power equipment, integrating design, research and development, manufacturing and technical services.

2.What are the main products of your company?

Our company specializes in the production and sales of high-quality power equipment, including power distribution equipment, electrical products, generators, charging piles, frequency converters, etc. It is widely used in residential, commercial and industrial fields.

3.How do you ensure the quality of your products?

We strictly adhere to international standards and quality management systems. All products undergo rigorous testing and inspection before leaving the factory. We also offer a product quality guarantee period to ensure that the products you purchase meet your expected performance.

4.Do you offer customization services?

Yes, we can provide customized services according to the specific needs of our customers. Whether it's product specifications, design, or functionality, our technical team can work with you to develop solutions that meet your requirements.

5.Can you print our brand on the product?

Yes, of course, we also do OEM to print client’s brand on the product
